Engineered Mesh Uppers
The default breathable upper for running and training shoes - light, ventilated and easy to brand, with structure added by overlays and knit zoning.
What engineered mesh is.

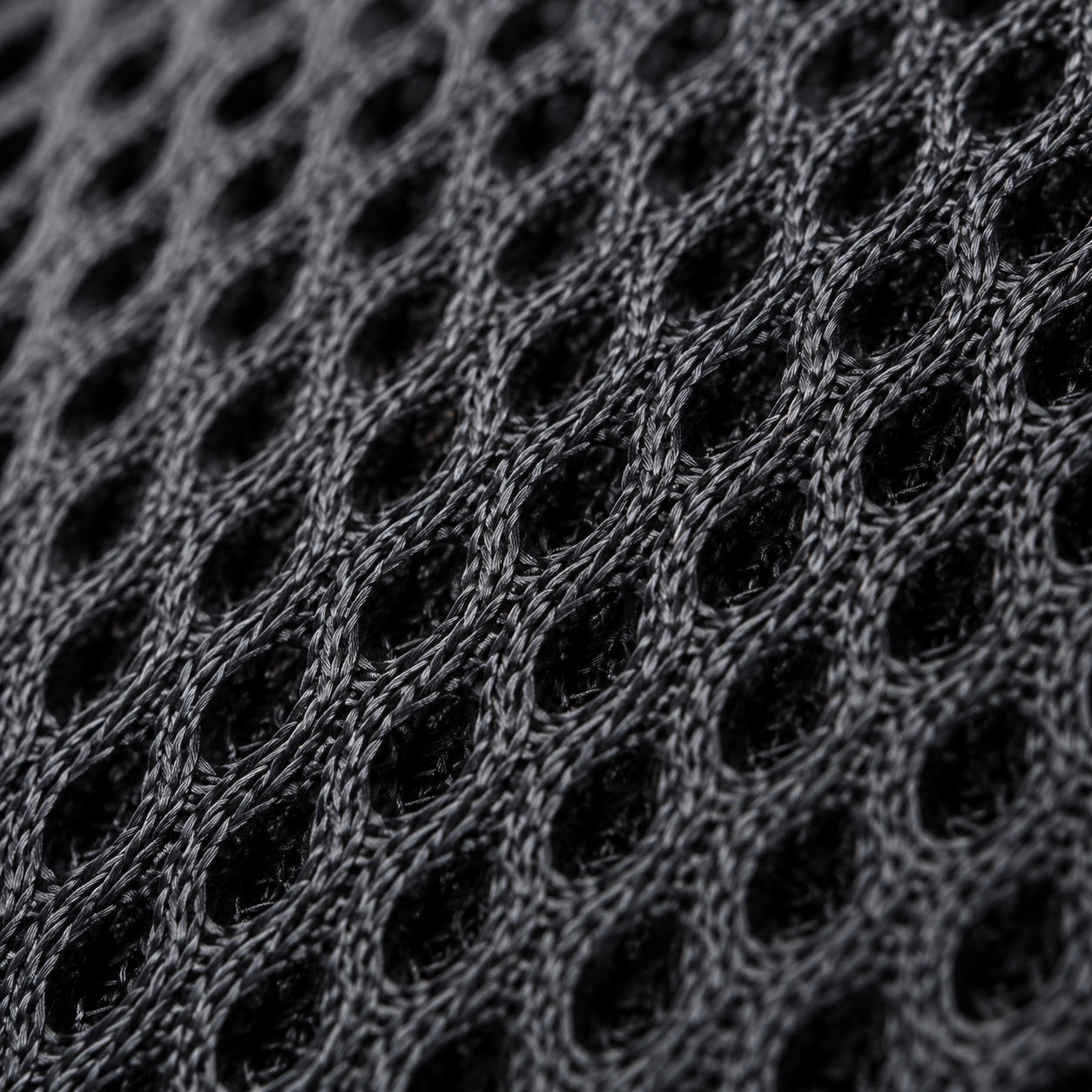

Engineered mesh is a knitted or warp-knit synthetic upper material with zones of different density for breathability, stretch and support. It is the workhorse upper for running and training shoes because it is light, ventilated and takes screen print, heat-transfer film and welded overlays cleanly. "Engineered" means the open and closed zones are designed deliberately - open mesh over the forefoot for airflow, denser knit at the eyestay, toe and heel for lockdown and abrasion resistance.
Mesh on its own has almost no structure, so it is paired with PU or TPU overlays, a moulded heel counter and a reinforced eyestay. These elements carry the lacing load and hold the foot, while the mesh handles ventilation and graphics. The split of jobs is what keeps the shoe both breathable and supportive.
The two broad families are single-layer engineered mesh (lighter, more technical, run roughly 90-180 GSM) and sandwich/spacer mesh (a foam or spacer yarn laminated between two faces, roughly 150-250 GSM, softer and more padded for comfort and walking). Weight, stretch and hand-feel all move with GSM and weave, so the same silhouette can be pushed toward race-light or cushioned-comfort by changing the mesh alone.
For branding, mesh is one of the easiest uppers to work with: detailed multi-colour heat-transfer and screen graphics sit flat on the surface, and welded TPU logos add a tonal, seamless option. We confirm the mesh grade, overlay map and branding method on the development sample so look, durability and cost all land together.
Key properties.
Swipe horizontally to view all columns.
| Property | Detail |
|---|---|
| Breathability | High - the primary reason it is used in athletic shoes; tunable by open-zone area |
| Weight | Low; ~90-180 GSM single-layer, ~150-250 GSM sandwich mesh |
| Branding | Screen and heat-transfer print, welded TPU overlays, sublimation on light grounds |
| Support | Low on its own - needs PU/TPU overlays, heel counter and knit zoning |
| Durability | Medium; abrasion resistance set by overlay coverage and yarn |
| Water resistance | Low - inherently ventilated; needs a membrane for water resistance |
| Cost | Low to medium depending on construction and overlay complexity |
Trade-offs.
Strengths
- Excellent breathability and low weight
- Takes detailed multi-colour branding and welded overlays
- Cost-effective for running, training and summer lines
- Wide GSM/weave range tunes one platform from light to cushioned
- Fast and low-risk to develop versus knit
Watch-outs
- Needs overlays and a counter for structure and durability
- Less premium hand-feel than knit
- Not suited to water-resistant styles without a membrane
Typical mesh grades and where they fit
Indicative ranges to frame a brief - final spec is confirmed at sampling.
Swipe horizontally to view all columns.
| Grade | Approx. GSM | Character | Best-fit category |
|---|---|---|---|
| Light single-layer engineered mesh | 90-130 | Very breathable, minimal padding, technical look | Race-leaning and lightweight daily trainers |
| Standard single-layer engineered mesh | 130-180 | Balanced airflow, stretch and durability | Daily-trainer running and training shoes |
| Sandwich / spacer mesh | 150-250 | Padded, soft hand-feel, more structure | Comfort, walking and cushioned trainers |
| Double-jacquard / dense mesh | 180-260 | Lower stretch, higher abrasion resistance | High-wear zones and rugged casual styles |
Spec mesh as a system, not a swatch
The mesh choice only works alongside its reinforcement and lining.
Treat the upper as a system: open mesh for airflow, an overlay map for lockdown and abrasion, a moulded heel counter for rearfoot hold, and a lining for comfort. A common mistake is choosing a beautiful light mesh and then bolting on heavy overlays that kill the weight saving - decide the weight and support target first, then pick the mesh and overlay together.
For durability, concentrate denser knit or welded film at the toe wrap, eyestay and medial forefoot where most wear happens, and keep open zones over the instep. Pair mesh with a cushioned EVA midsole and a rubber outsole for a complete athletic platform. If you are weighing this against a premium look, our mesh vs knit comparison walks through the trade-offs.
Questions.
Is mesh durable enough for daily wear?
Can mesh be water-resistant?
What GSM mesh should I specify?
How is branding applied to mesh?
Mesh or knit for my running shoe?
