How these five options were selected
Tread pattern controls edge grip, contact area, water movement, flex, and debris release. These five patterns cover common athletic and casual use cases.
- Performance job in the finished shoe
- Compatibility with adjacent materials and processes
- Weight, feel, durability, and cost
- Color and supplier consistency
- Test method and production tolerance
The order is a decision framework, not a universal league table. The best choice changes with the target consumer, destination market, price tier, quantity, and the evidence available during sampling.

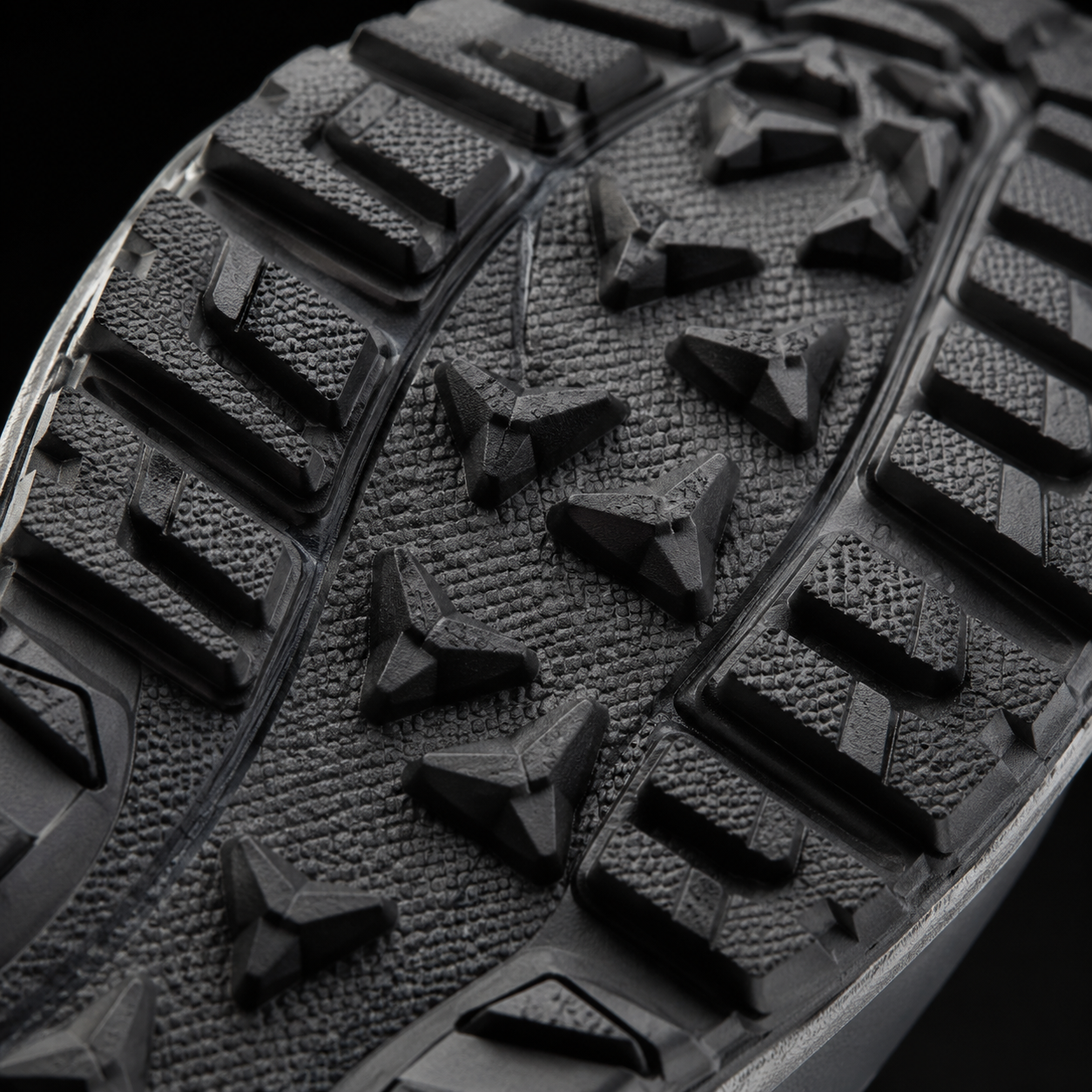

rubber outsole tread patterns: top five at a glance
Pattern cannot be ranked separately from rubber compound, hardness, surface, and wear. A strong dry-floor design may perform poorly in mud or standing water.
Swipe horizontally to view all columns.
| Rank | Option | Best for | Control point | Trade-off |
|---|---|---|---|---|
| 1 | Waffle grid | road running and multi-directional surface contact | Cell size, lug height, spacing, flex grooves, compound, and wear | Small cells can retain debris and offer limited penetration on loose terrain. |
| 2 | Directional chevrons | braking and propulsion zones | Angle, orientation, depth, spacing, compound, and zone boundary | Strong directionality can reduce lateral grip if poorly balanced. |
| 3 | Segmented rubber pods | lightweight road shoes with mapped coverage | Pod location, size, thickness, bond margin, gap, and wear map | Small pods increase bonding edges and exposed foam wear. |
| 4 | Herringbone | court and indoor multi-directional movement | Pitch, depth, channel width, compound, contact area, and dust behavior | Fine channels can clog with dust and may wear quickly outdoors. |
| 5 | Open trail lugs | loose soil and mud release | Depth, spacing, base taper, orientation, compound, and flex | They feel harsh and unstable on hard smooth surfaces. |
1. Waffle grid
Waffle grid is best suited to road running and multi-directional surface contact. Distributed lugs create edges while preserving flex and contact area.
Cell size, lug height, spacing, flex grooves, compound, and wear
Main trade-off: Small cells can retain debris and offer limited penetration on loose terrain.
- Buyer check: Test transition and wear on the intended pavement texture.
- Approval evidence: Record the agreed specification, physical reference, test or inspection result, and the person authorized to approve it.
2. Directional chevrons
Directional chevrons is best suited to braking and propulsion zones. Angled edges can be oriented differently in heel and forefoot areas.
Angle, orientation, depth, spacing, compound, and zone boundary
Main trade-off: Strong directionality can reduce lateral grip if poorly balanced.
- Buyer check: Test forward, braking, and lateral movement rather than one pull direction.
- Approval evidence: Record the agreed specification, physical reference, test or inspection result, and the person authorized to approve it.
3. Segmented rubber pods
Segmented rubber pods is best suited to lightweight road shoes with mapped coverage. Separate pods protect wear points while exposed foam and grooves preserve flexibility.
Pod location, size, thickness, bond margin, gap, and wear map
Main trade-off: Small pods increase bonding edges and exposed foam wear.
- Buyer check: Inspect bond and wear after repeated flex and abrasion.
- Approval evidence: Record the agreed specification, physical reference, test or inspection result, and the person authorized to approve it.
4. Herringbone
Herringbone is best suited to court and indoor multi-directional movement. Repeated angled channels provide many edges and controlled slide.
Pitch, depth, channel width, compound, contact area, and dust behavior
Main trade-off: Fine channels can clog with dust and may wear quickly outdoors.
- Buyer check: Test on the actual floor with realistic dust and moisture.
- Approval evidence: Record the agreed specification, physical reference, test or inspection result, and the person authorized to approve it.
5. Open trail lugs
Open trail lugs is best suited to loose soil and mud release. Large spaced lugs penetrate and allow debris to clear between contacts.
Depth, spacing, base taper, orientation, compound, and flex
Main trade-off: They feel harsh and unstable on hard smooth surfaces.
- Buyer check: Balance uphill, downhill, side-slope, and road-transition performance.
- Approval evidence: Record the agreed specification, physical reference, test or inspection result, and the person authorized to approve it.
Turn the list into a production brief
Define target surfaces and test the exact compound-pattern combination. Include worn-state testing where traction after abrasion matters.
- Material type, grade, thickness, density, hardness, color, and approved supplier
- Location and performance job in the finished construction
- Bonding, sewing, molding, or finishing process
- Incoming-material and finished-shoe acceptance limits
Put the agreed route into the tech pack, quotation assumptions, and golden-sample approval. Use the RFQ form to share the available information and ask the factory to identify every remaining assumption.
Risks that can change the ranking
A choice that looks strongest in a presentation can move down the list when material minimums, tooling, test results, or production tolerances are added.
- Selecting a material by marketing name instead of measurable grade
- Ignoring bond compatibility and surface preparation
- Approving one swatch without defining lot-to-lot tolerance
- Substituting material after sampling without revalidation
Buyer decision rule
Choose geometry for the dominant surface and movement rather than creating a visually aggressive pattern with no tested job.
Do not approve the winning option until its specification, sample evidence, commercial assumptions, and quality gate all describe the same product.
Key takeaways
- Waffle grid: road running and multi-directional surface contact; control cell size, lug height, spacing, flex grooves, compound, and wear.
- Directional chevrons: braking and propulsion zones; control angle, orientation, depth, spacing, compound, and zone boundary.
- Segmented rubber pods: lightweight road shoes with mapped coverage; control pod location, size, thickness, bond margin, gap, and wear map.
- Herringbone: court and indoor multi-directional movement; control pitch, depth, channel width, compound, contact area, and dust behavior.
- Open trail lugs: loose soil and mud release; control depth, spacing, base taper, orientation, compound, and flex.
